Accessories & supports

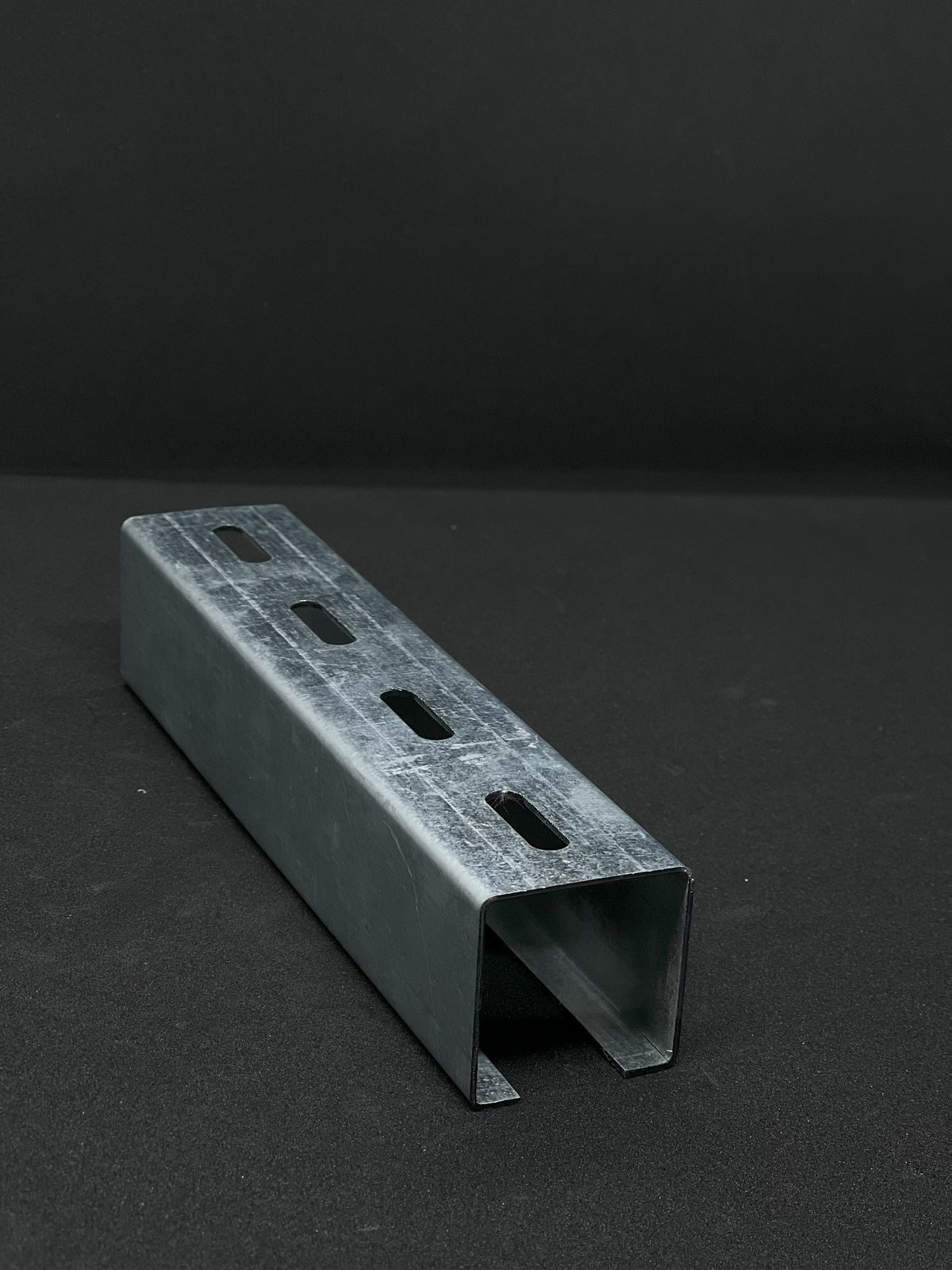

Strut channel (unistrut) sections
Slotted galvanized steel C-section channel for building supports, hangers and frames for cable trays, conduit and equipment.
Use
Strut channel is the base of most support and hanger systems: it is fixed to the ceiling or wall with hangers or anchors, and cable trays, conduit or panels are mounted on it.
Features
- Slots along the channel for flexible fixing on site
- Cut to the length you need in our factory
- Supplied with matching clamps, hangers and bolts
Send us the sizes and quantity and we will reply with a quotation.
Standard sizes
| Item | Value |
|---|---|
| C-section | 40×20 mm and 50×20 mm |
| Thickness | 2.0 mm |
| Standard length | 2 m |
| Fixing slots | For M12 bolts |
- 40×20 mm channel suits tray widths up to 300 mm
- 50×20 mm channel suits tray widths up to 900 mm
Standards
- BS EN ISO 1461: hot-dip galvanizing after fabrication
- EN 10327: galvanized steel sheet before fabrication
- ISO 9001:2015: factory quality management system
