Accessories & supports

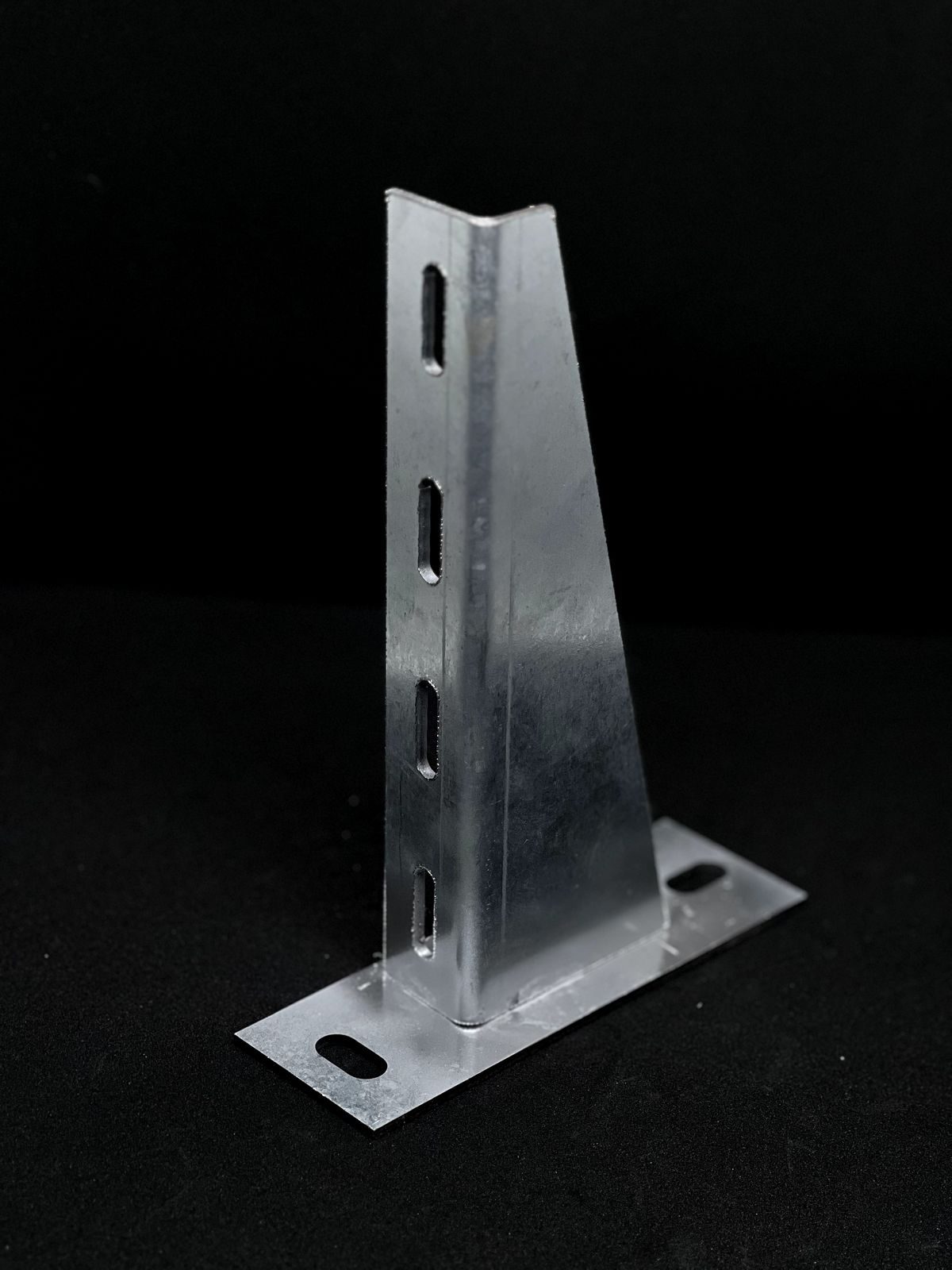

Cable tray cantilever arms, floor brackets and hangers
Galvanized wall cantilever arms, floor-mounted brackets, clamp hangers and anchor bolts for installing cable trays and ladders on walls, ceilings and floors.
What we make
- Wall cantilever arms: for mounting trays on walls and columns
- Floor brackets: to raise trays off the floor in electrical rooms and plants
- Clamp hangers: to suspend trays from beams and ceilings
- Anchor bolts and splice plates: so the whole route installs without cutting on site
All supports have fixing slots, match the tray finish and are delivered with the tray order.
Support spacing
Our recommended standard distance between two support points is 1.5 m. Send us the tray width and cable weight and we will select the right bracket or support.
Standards
- BS EN ISO 1461: hot-dip galvanizing after fabrication
- AWS D1.1: CO2 welding of steel
- ISO 9001:2015: factory quality management system
