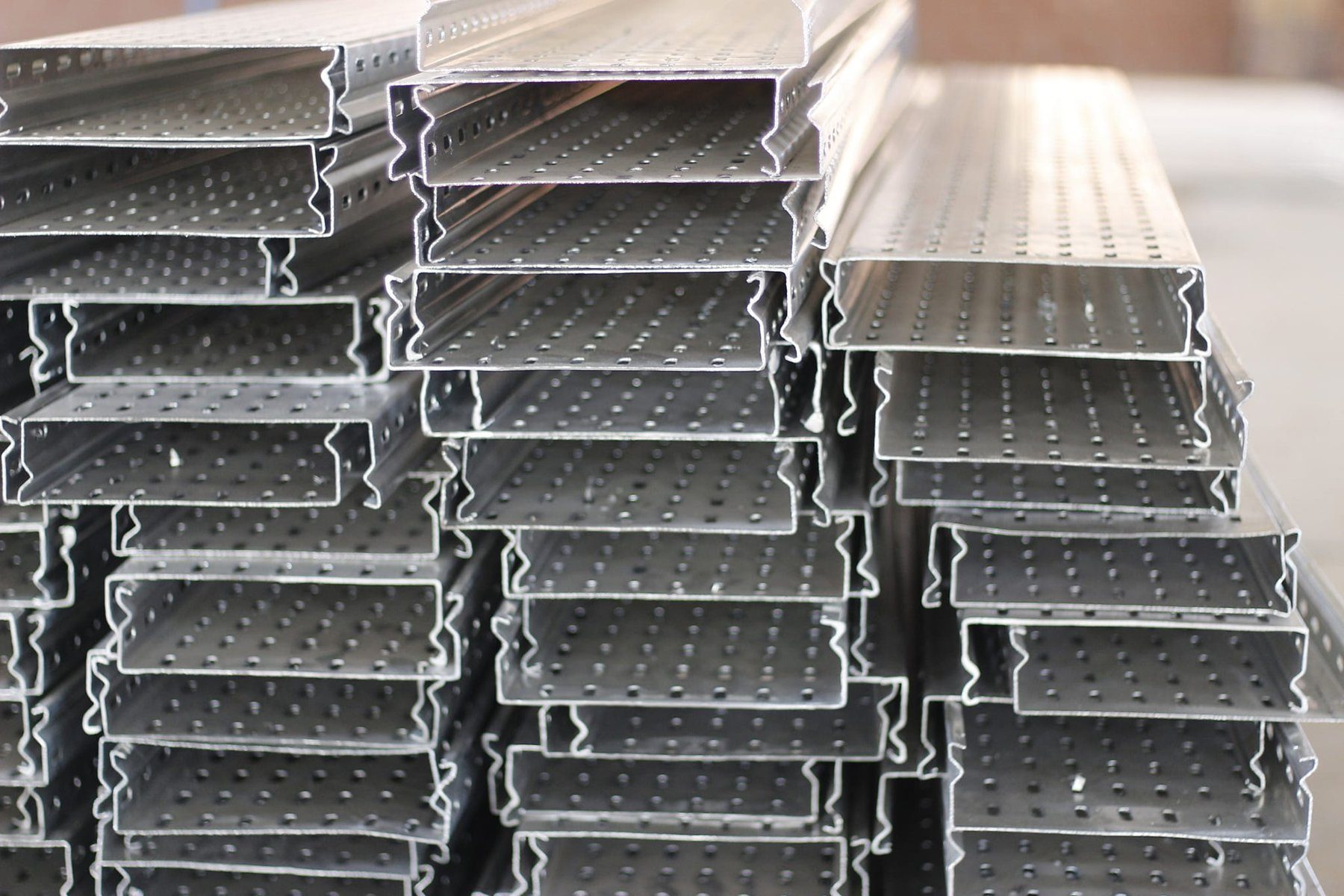

Pre-galvanized cable tray
Made from galvanized sheet for dry indoor areas such as offices, malls, hospitals and data rooms. Lighter on budget, clean finish.
When to choose it
Pre-galvanized tray is formed from sheet that is already zinc-coated at the mill. It gives a smooth, uniform finish and a lower price, and it suits dry indoor installations: ceilings of commercial buildings, shafts, electrical rooms and data centres.
For outdoor, coastal or humid areas choose hot-dip galvanized tray instead, because cut edges and holes on pre-galvanized sheet are not re-coated.
Sizes
Produced to your widths, side heights and thickness, with the full range of matching fittings and covers.
Standard sizes
| Item | Value |
|---|---|
| Width | 50 to 600 mm |
| Side height | 25 to 100 mm |
| Thickness | 1.0 – 1.25 – 1.5 – 2.0 mm |
| Length | 3 m |
| Side profile | Normal (N) – return flange (F) – snap-on (R) |
| Bend radius | 250 mm, other radii on request |
- 1.25 mm is the minimum thickness we recommend for hot-dip galvanizing
- Width must be greater than or equal to height
- Snap-on (R) trays start at 50 mm height
- Any other size can be made to order
Standards
- EN 10327: galvanized steel sheet before fabrication
- NEMA VE 1-2009: metal cable tray systems
- ISO 9001:2015: factory quality management system
