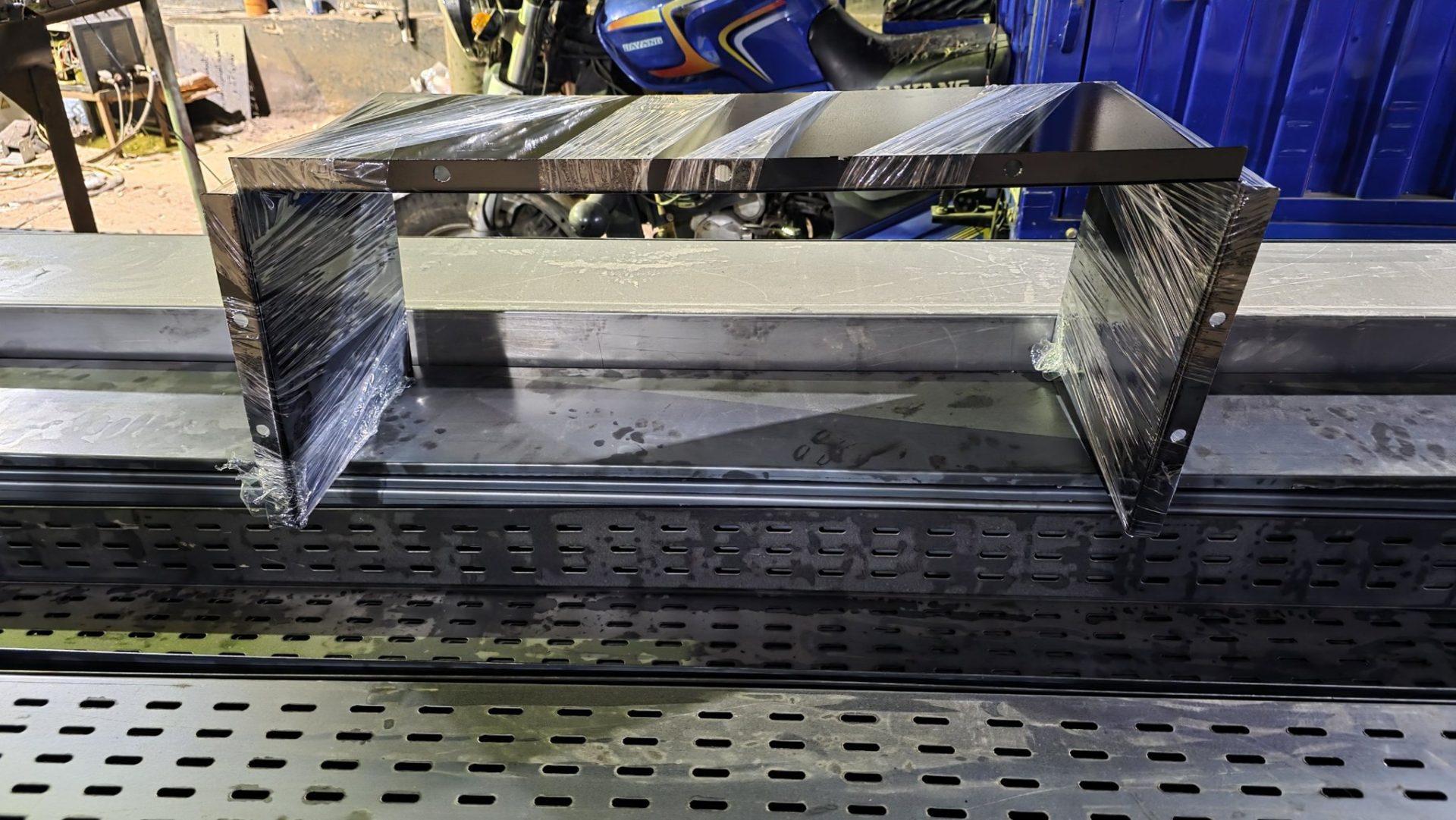

Powder coated (electrostatic painted) cable tray
Electrostatic painted tray in the colour your project needs — for exposed runs where appearance matters or for colour-coding services.
When to choose it
Powder coating gives a durable, even colour layer. It is used where trays stay visible — lobbies, showrooms, car parks — and where consultants ask for colour-coding of fire alarm, low-current or power routes.
Colours
Standard RAL colours or the colour in your specification. Tell us the RAL code with your inquiry.
Base under the paint
Electrostatic epoxy powder is applied over hot-dip galvanized tray for exposed areas, or over pre-galvanized tray indoors. Together the two layers give the highest protection against rust, weather and scratches.
Standard sizes
| Item | Value |
|---|---|
| Width | 50 to 600 mm |
| Side height | 25 to 100 mm |
| Thickness | 1.0 – 1.25 – 1.5 – 2.0 mm |
| Length | 3 m |
| Side profile | Normal (N) – return flange (F) – snap-on (R) |
| Bend radius | 250 mm, other radii on request |
- 1.25 mm is the minimum thickness we recommend for hot-dip galvanizing
- Width must be greater than or equal to height
- Snap-on (R) trays start at 50 mm height
- Any other size can be made to order
Standards
- BS EN ISO 1461: hot-dip galvanizing after fabrication
- EN 10327: galvanized steel sheet before fabrication
- NEMA VE 1-2009: metal cable tray systems
- ISO 9001:2015: factory quality management system
