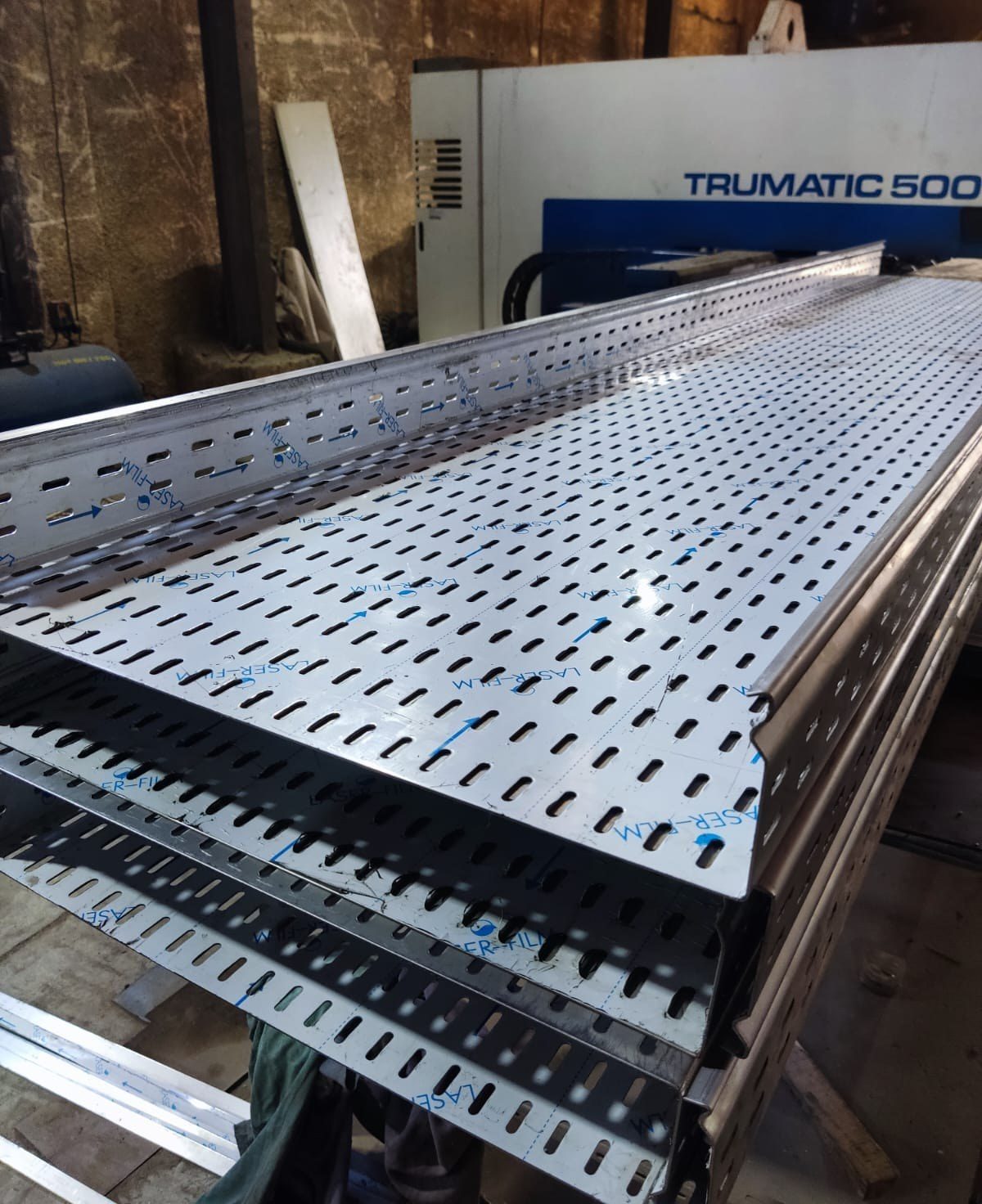

Stainless steel cable tray (304 / 316)
For food, pharmaceutical, coastal, desalination and chemical plants where galvanized steel will not last.
304 or 316?
- Stainless 304 resists corrosion in most industrial environments and suits food, beverage and pharmaceutical plants that need easy cleaning.
- Stainless 316 contains about 2% molybdenum, which gives it higher resistance to chlorides. It is the choice for coastal sites, desalination plants, marine facilities and chemical areas.
Stainless costs more at the start, but in these environments it runs for years without maintenance, so the lifetime cost is often lower. Read our guide to 304 and 316.
Standard sizes
| Item | Value |
|---|---|
| Width | 50 to 600 mm |
| Side height | 25 to 100 mm |
| Thickness | 1.0 – 1.25 – 1.5 – 2.0 mm |
| Length | 3 m |
| Side profile | Normal (N) – return flange (F) – snap-on (R) |
| Bend radius | 250 mm, other radii on request |
- Width must be greater than or equal to height
- Snap-on (R) trays start at 50 mm height
- Any other size can be made to order
Standards
- NEMA VE 1-2009: metal cable tray systems
- ISO 9001:2015: factory quality management system
