Cable trunking
Cable trunking

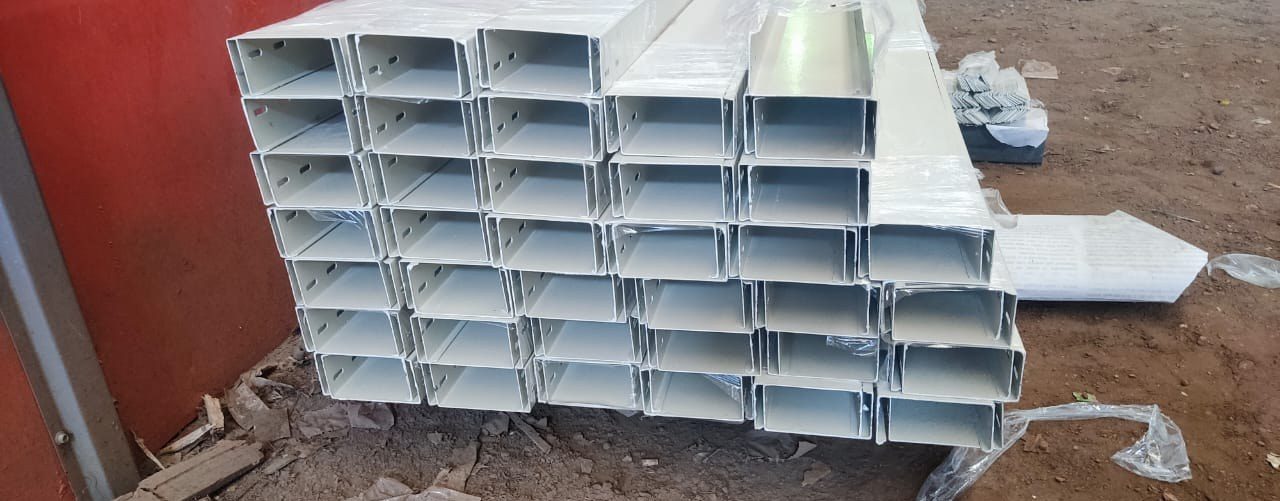

Closed steel trunking with a removable cover, protecting cables from dust, damage and tampering.
When to choose it
Trunking fully encloses the cables. It is used along walls and in workshops, car parks and public areas where cables must be protected or hidden, and in panels rooms for neat distribution.
Available pre-galvanized, hot-dip galvanized or powder coated, with matching bends, tees and end caps.
Standard sizes
| Item | Value |
|---|---|
| Width | 50 to 600 mm |
| Height | 25 to 100 mm |
| Thickness | 1.0 – 1.25 – 1.5 – 2.0 mm |
| Length | 3 m |
| Side profile | Normal (N) – return flange (F) – snap-on (R) |
Standards
- BS EN ISO 1461: hot-dip galvanizing after fabrication
- EN 10327: galvanized steel sheet before fabrication
- NEMA VE 1-2009: metal cable tray systems
- ISO 9001:2015: factory quality management system
